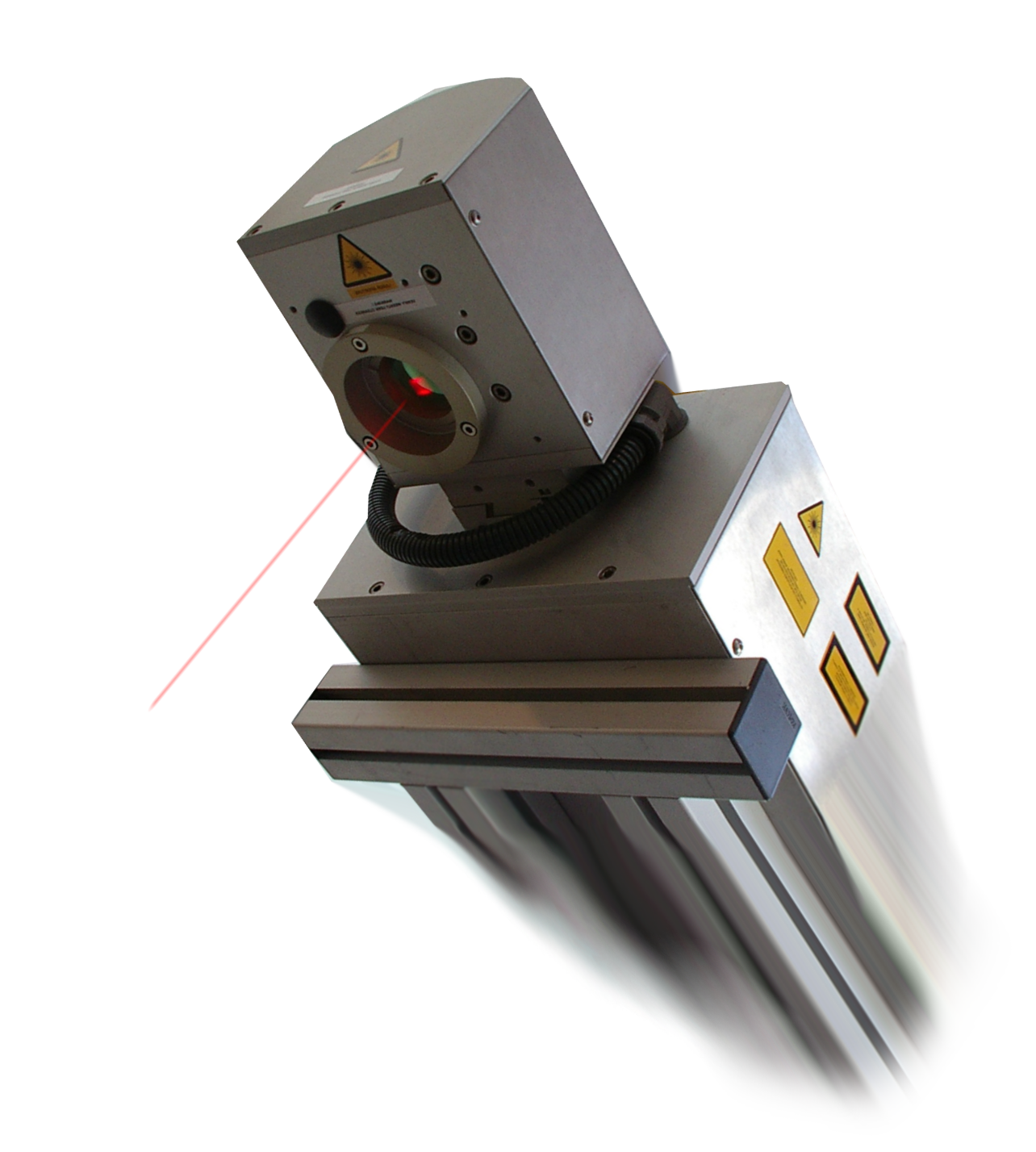

laser 100 2X

Click for larger imageClick for larger image


SPECIFICATIONS

The Laser

Power Range 100 watt CO2 Laser
Wavelength 10.6µ
Cooling Water Cooled
Red Pointer 25mW
Total Power Requirement 2.5 KW
Overall Dimensions 205 x 105 x 185 cm
Total Weight 160 Kg

Environmental Requirements

Ambient Temperature (Operational) 50-90 °F (10-32 °C)
Relative Humidity <90% (Non-condensing)

Power Requirements

AC Input 400 VAC 50/60 Hz three phase with neutral and earth. 30 A per phase

The Scan Head

Pre-focus Multi level optical lens
Axis Specially coated 2 mirrors
Focus and adjustment Focusing Lens

The Frame

Frame Aluminum frame
Lift Support for computer screen,
Keyboard and mouse,
Motorized Multi lift system to adjust
Working and focusing height>

Other Accessories

Computer System Computer System with LCD Screen
Other Included Items Cooling system for the laser
Marking table with special positioning and rotation system
All power supplies and drivers
Software LSTTEX marking software with import of DXF and BITMAP files
Integrated lettering and drawing capability
Suggested Design Software Photoshop or Corel Draw (not included)
Optional Equipment 2 Mannequin robot with integrated automic marking system

Total Power Requirements

AC Input Voltage 400 VAC 50/60 Hz three phase with neutral and earth
Field Size (Marking Area)
Variable up to 80 x 80 cm
